H64Y-1500Lb |
制造验收技术标准
- 制造验收技术条件按ANSI B16.34和E101标准的规定；
- 阀门结构长度按E101的规定；
- 阀体焊接坡口按ANSl、B16.25的规定或按用户提供的尺寸
主要零件材料 Material for Main Parts
|
零件名称
Part Name |
材料牌号 Material Designation |
|
阀 体 Body |
WCB |
WCl |
WC6 |
WC9 |
|
阀 座 Seat |
25 |
15CrMoA |
12CrlMoVA |
|
阀 瓣 Disc |
WCB |
WCl |
WC6 |
WC9 |
|
摇 杆 Stem |
WCB |
WCl |
WC6 |
WC9 |
|
阀 盖 Bonnet |
25 |
15CrMoA |
12CrlMoVA |
|
销 轴 Pin shaft |
1Crl7Nil2 |
20CrlMoVA |
|
密封环 Sealin gring |
软钢或(增强柔性石墨)
soft steel or (reinforced fiexible graphite) |

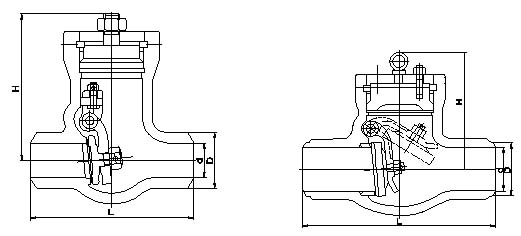

主要尺寸及重量 Main dimensions and weight
|
公称通径 NPS/in.
Nominal diameter |
外形尺寸和连接尺寸/mm
Main extenal and connection dimensions |
重量/kg
Weight |
|
d |
L |
H |
|
H64Y-1500Lb |
|
2(1/2) |
56 |
254 |
282 |
57 |
|
3 |
64 |
325 |
300 |
57 |
|
4 |
84 |
406 |
350 |
80 |
|
5 |
100 |
483 |
425 |
115 |
|
6 |
126 |
559 |
400 |
180 |
|
8 |
158 |
711 |
490 |
270 |
|
10 |
200 |
864 |
540 |
430 |
|
12 |
250 |
991 |
650 |
630 |
|
14 |
280 |
1067 |
710 |
1400 |
|
H64Y-2000Lb |
|
2(1/2) |
50 |
330 |
240 |
40 |
|
3 |
60 |
368 |
305 |
60 |
|
4 |
80 |
457 |
315 |
95 |
|
5 |
96 |
533 |
409 |
170 |
|
6 |
118 |
610 |
465 |
186 |
|
8 |
147 |
762 |
528 |
415 |
|
10 |
180 |
914 |
613 |
658 |
|
12 |
222 |
1041 |
680 |
1200 |
|
14 |
254 |
1118 |
745 |
1638 |
|
H64Y-2500Lb |
|
3 |
54 |
368 |
297 |
44 |
|
4 |
70 |
457 |
385 |
110 |
|
5 |
86 |
533 |
410 |
130 |
|
6 |
104 |
610 |
455 |
192 |
|
8 |
130 |
762 |
557 |
466 |
|
10 |
162 |
914 |
615 |
730 |
|
12 |
210 |
1041 |
715 |
1120 |
|
14 |
234 |
1118 |
790 |
1495 |
|
16 |
264 |
1245 |
815 |
1950 |
|
18 |
304 |
1397 |
815 | | |
|
|
|
